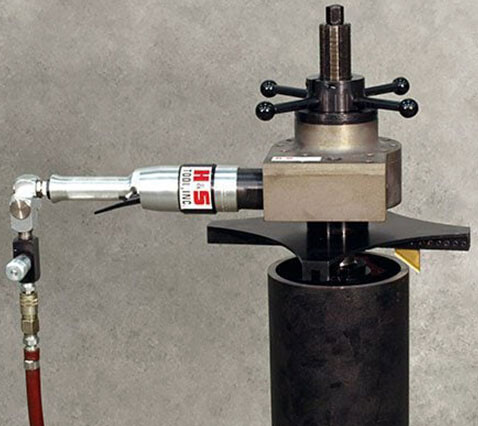

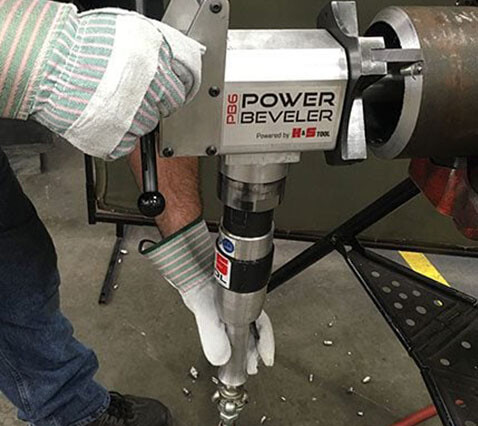

PB6 - PB12 POWER BEVELER

PRODUCT ADVANTAGES

• 3 Hp pneumatic motor with heavy duty gearing delivers the speed and torque to quickly cut heavy wall pipes of carbon, chrome moly, or stainless steel materials.
• Torque-free operation locks the machine into the pipe allowing the operator to easily run the machine without requiring additional torque restraint.
• Heavy-duty tapered roller bearings for very rigid and smooth operation.

VERSATILITY

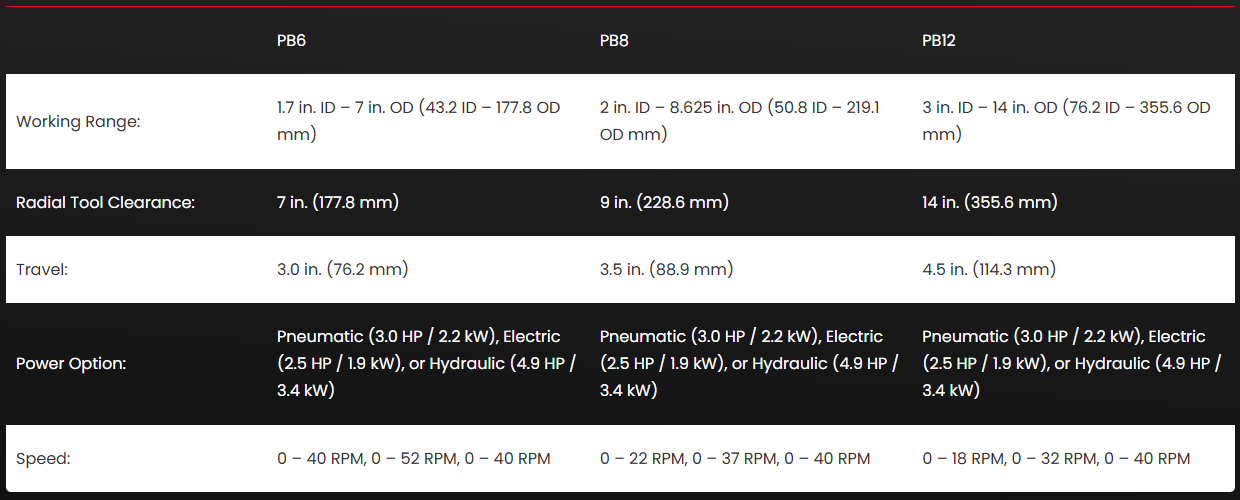

Select from 3 models sized to bevel 6, 8 and 12 inches (152.4, 203.2 or 304.8 mm) pipe.

• Quick change mandrel allows the mandrel to be quickly removed from the power unit, reducing the weight.
• Universal tool holder is designed to accept a variety of tooling, enabling you to perform up to three operations at the same time.
• Variety of tooling options allow you to bevel, counter bore, and perform J-prep with high-speed steel or indexable carbide tooling.
• Three motor options to choose from allowing you the flexibility to power the machine anywhere – pneumatic, hydraulic, and electric.

RELIABILITY
Self-centering 3 leg wedge system centers the tool in the pipe for accurate machining.

• Lightweight aluminum alloy components for easy handling.
• Easy grip feed handle with precision index ring makes feeding the tool to a required depth easy and accurate.
• Integrated wedge system allows quick change of leg extensions.
• Standard set screws allow for easy installation of the tool bits – no reaching around the tool to release the blade.
• Corrosion resistant finish applied to external components prevents machine weathering.
• CE Certified for use in the European Union or any country where CE certification is required.
